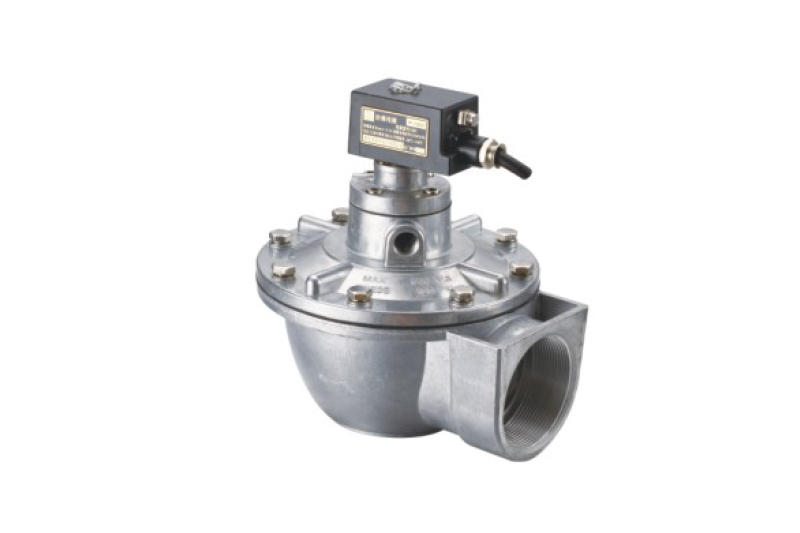

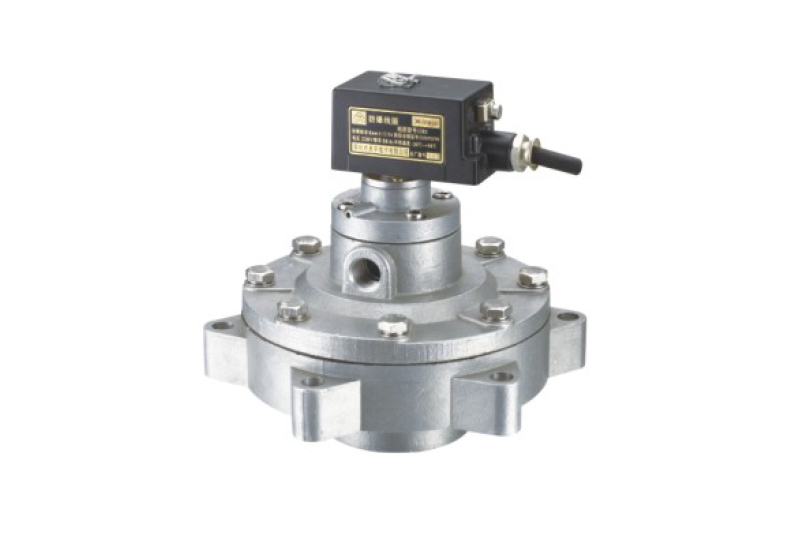

○ 防爆等级:Exml/IIT4

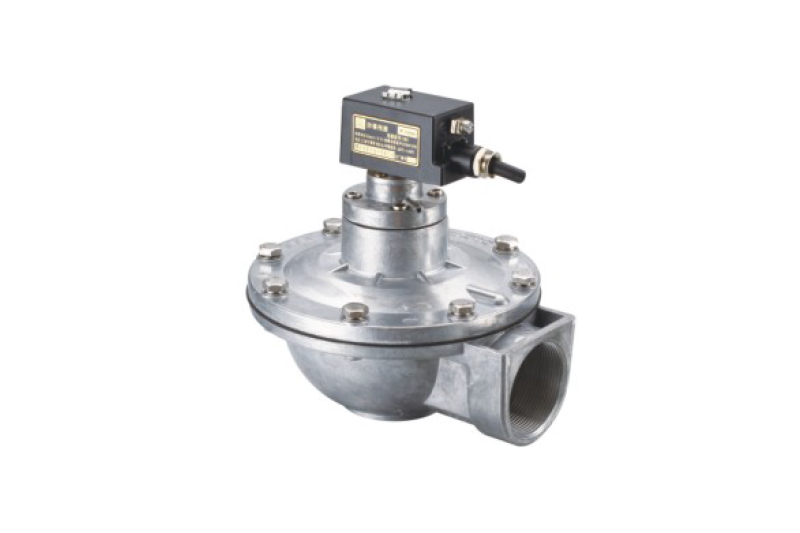

○ 各口径的电磁阀，只要加上本公司的防爆线圈，都可以变成防爆电磁脉冲阀
○ 订货时请给出电压和线缆的长度
○ 订购防爆型脉冲阀时在原型号后加"-EX"代号
| 型号 | 工作压力(MPa) | 环境温度 | 相对湿度 | 使用介质 | 工作电压 | 功率 | 公称通径 | 连接螺纹 |
| RMF-25DD-EX | 0.3-0.8 | -5~55℃ | ＜85％ | 清洁空气 | DC12VAC110V AC220V DC24V | DC15W AC13VA | ∅25mm | ∅31mm |
| RMF-45DD-EX | ∅40mm | ∅50mm | ||||||
| RMF-Z-25J-EX | DC11W AC13VA | ∅25mm | G1" | |||||
| RMF-Z-20J-EX | ∅20mm | G3/4" | ||||||
| RMF-Z-20M-EX | DC15W AC13VA | ∅20mm | G3/4" | |||||
| RMF-Z-15M-EX | ∅15mm | G1/2" | ||||||
| RMF-Z-20A-EX | DC11W/AC13VA | ∅20mm | G3/4" | |||||
| RMF-Z-20P-EX | DC15W AC13VA | ∅20mm | G3/4" | |||||
| RMF-Z-25P-EX | ∅25mm | G1" | ||||||
| RMF-Z-35P-EX | ∅35mm | G1-1/2" | ||||||
| RMF-Z-40S-EX | DC13W/AC23VA | ∅40mm | G1-1/2" | |||||
| RMF-Z-45P-EX | DC15W/AC13VA | ∅45mm | G1-1/2" | |||||
| RMF-Z-50S-EX | ∅50mm | G2" | ||||||
| RMF-Z-62S-EX | ∅62mm | G2-1/2" | ||||||
| RMF-Z-76S-EX | ∅76mm | G3" | ||||||
| RMF-Y-40S-EX | DC13W/AC23VA | ∅45mm | G1-1/2" | |||||
| RMF-Y-50S-EX | DC15W AC13VA | ∅50mm | ∅62.5mm | |||||
| RMF-Y-62S-EX | ∅62mm | ∅76mm | ||||||
| RMF-Y-76S-EX | ∅76mm | ∅90mm |
