气动带手轮球阀
型号：RATO52DA

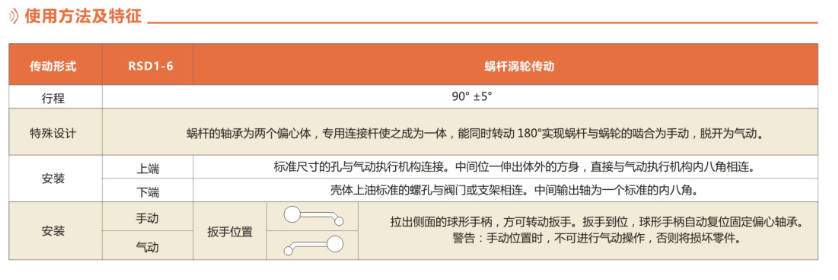

带有手动机构的气动蝶阀，气动球阀，只要通过简单的切换，即能实现阀门的手动操作。手动机构安装在气动执行装置与阀门中间，操作极其方便。
- 产品简介

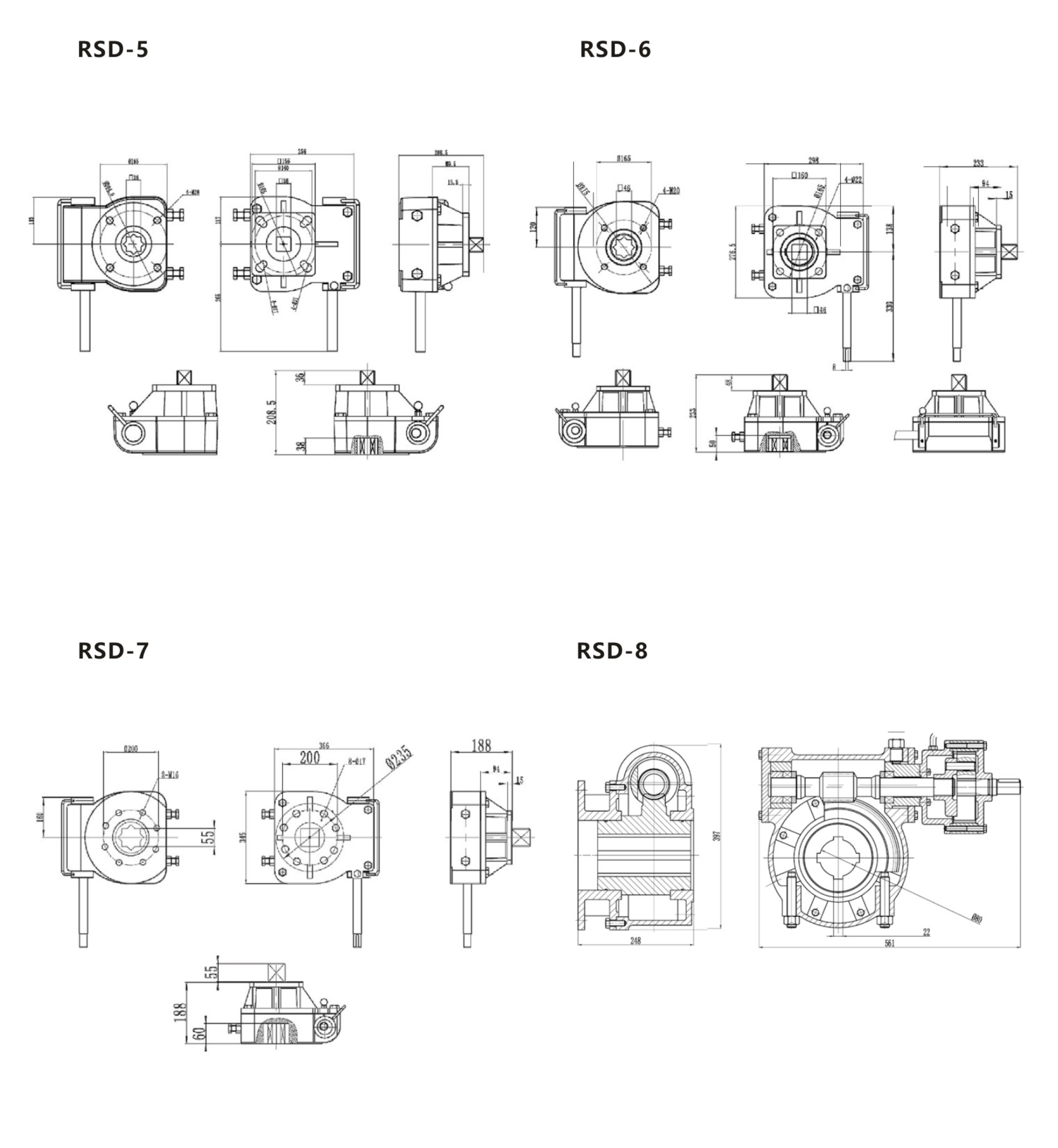

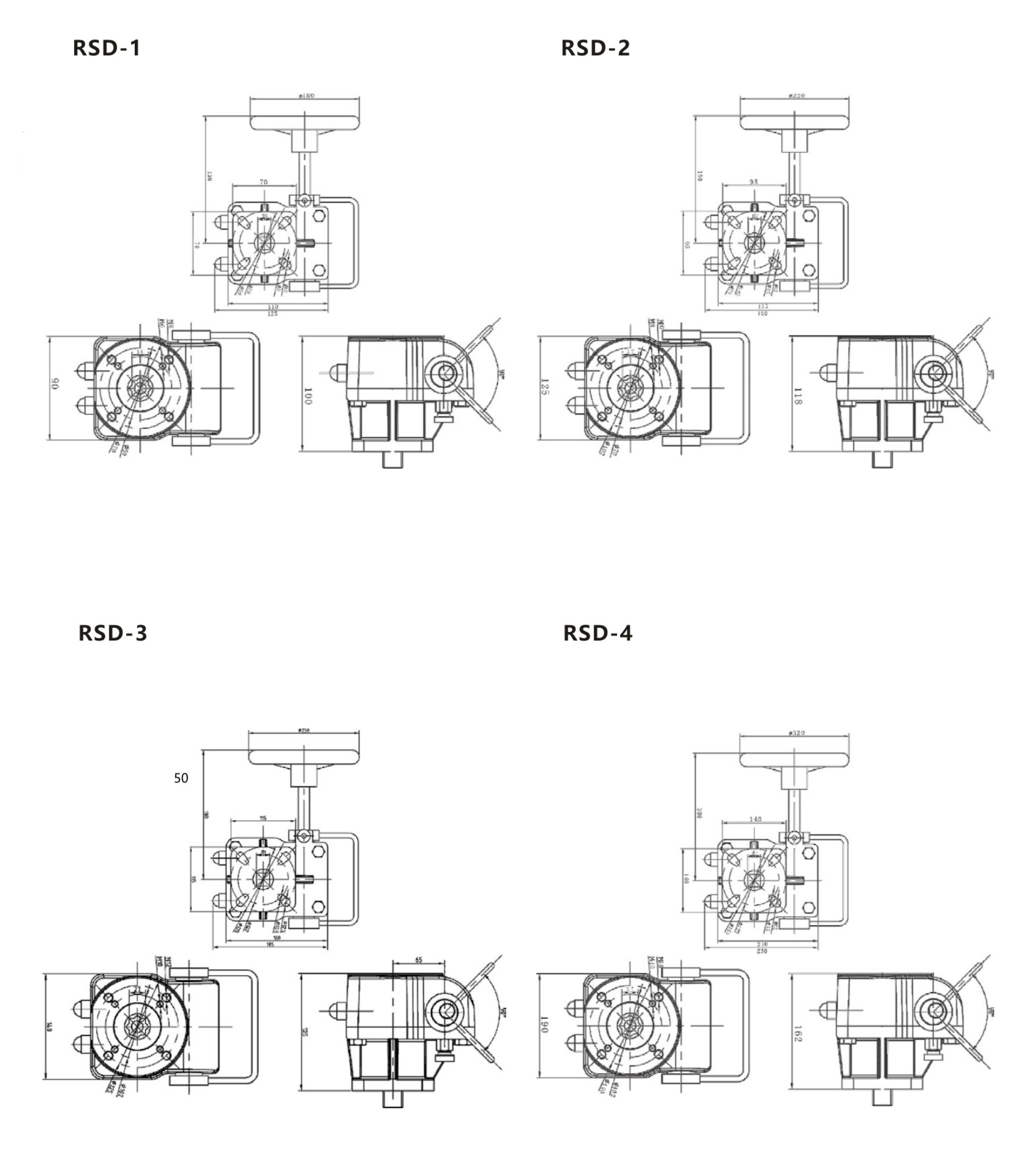

- 外形尺寸
- 技术参数
- 相关视频
| 型号 | 手轮型号 | 轴向面积 | 速度比 | 直径 | 输入扭矩 | 输出扭矩 | 型号 | 手轮型号 |
| DA | ∅ | NM | NM | SR | ||||
| RAT052DA | RSD-1 | 11*11 | 26:1 | 200 | 60 | 150 | RAT052SA | RSD-1 |
| RAT063DA | RSD-1 | 14X14 | 26:1 | 200 | 60 | 150 | RAT063SA | RSD-1 |
| RATO75DA | RSD-1 | 14X14 | 26:1 | 200 | 60 | 150 | RAT075SA | RSD-1 |
| RATO83DA | RSD-2 | 17*17 | 28:1 | 200 | 60 | 300 | RAT083SA | RSD-2 |
| RATO92DA | RSD-2 | 17*17 | 28:1 | 220 | 60 | 300 | RAT092SA | RSD-2 |
| RAT105DA | RSD-3 | 22*22 | 38:1 | 280 | 60 | 600 | RAT105SA | RSD-3 |
| RAT125DA | RSD-3 | 22*22 | 38:1 | 280 | 60 | 600 | RAT125SA | RSD-3 |
| RAT140DA | RSD-4 | 27*27 | 54:1 | 350 | 90 | 1000 | RAT140SA | RSD-4 |
| RAT160DA | RSD-4 | 27*27 | 54:1 | 350 | 90 | 1000 | RAT160SA | RSD-4 |
| RAT190DA | RSD-5 | 36*36 | 80:1 | 500 | 110 | 2000 | RAT190SA | RSD-5 |
| RAT210DA | RSD-5 | 36*36 | 80:1 | 500 | 140 | 2000 | RAT210SA | RSD-5 |
| RAT240DA | RSD-6 | 46*46 | 78:1 | 500 | 140 | 3500 | RAT240SA | RSD-6 |
| RAT270DA | RSD-6 | 46*46 | 78:1 | 500 | 200 | 3500 | RAT270SA | RSD-6 |
| RAT300DA | RSD-6 | 46*46 | 78:1 | 500 | 200 | 3500 | RAT300SA | RSD-7 |
| RAT350DA | RSD-6 | 46*46 | 78:1 | 500 | 200 | 3500 | RAT350SA | RSD-7 |
| RAT400DA | RSD-7 | 55*55 | 98:1 | 600 | 200 | 4500 | RAT400SA | RSD-8 |
